Smart Sliding Automatic Gate Motor Kits Energy Efficient DC 1500KG Commercial

Model Number : BG1500

Certification : CE

Place of Origin : China

MOQ : 1

Price : 140-200USD

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : Unlimited quantity

Delivery Time : 7-15days

Product Name : Sliding Gate Operetor System

Model : BD1500

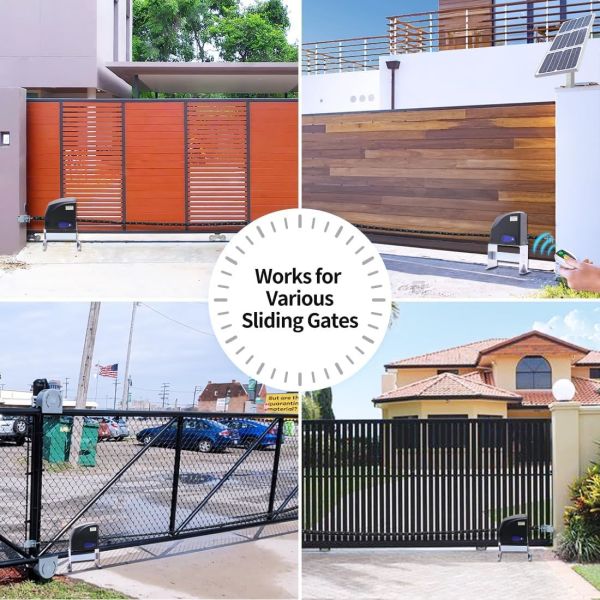

Application : Villa, Gate, Garage, Apartment, Park, courtyard

Max Load Capacity : 1500kg

Voltage : AC100V/220V

Motor Voltage : DC24V

Opening Speed : 12m/min

Remote Control : 2

Feature : Easy operation

Power Source : Electric

Warranty : 1 Year

Contact Now

Smart Technology Sliding Gate Motor Kits Energy Efficient DC 1500KG Commercial Use

Product Feature:

Anti-rush design. At the first operation after each power on, the motor runs in slow motion to the end stop to avoid rushing out of the limit. when the door reaches the end stop, the motor can only be operated by pressing the button of the opposite direction to avoid breaking out of the limit.
Motor runtime protection. To prevent the motor from running if travel distance fails, the control board automatically learns the motor running time, and 10s is added automatically as the time margin.
Co-op mode available. Two motors with the same type of control board on each can work synchronously. in this mode, infrared, ground sense, auto-close and other functions are synchronized.
Auto-close function. Countdown can be set from 1s to 250s.
Easy connection for network control. Can be directly paired with WiFi controllers simply through pressing one button onboard, or use the WiFi controller to copy the remotes paird with the control board.
Soft start & stop. High performance soft start and stop. The speed of the slow stop sector can be adjusted simply by rotating the MT knob.
Resistance stop & rebound. Switchable resistance stop and resistance rebound for the closing travel. Resistance stop for the opening travel.
Onboard socket for bluetooth module. A socket is integrated onboard for the standalone bluetooth module ( module not included by default).

Packing List:

Door opener * 1
Remote control * 2
Installation accessories * 1
Optional: external back up battery, solar panel, Infrared sensor, warning lamp, car vehicle sensor system.

Specifications:

Model	BG1500
Load Capacity	1500KG
Input Voltage	AC100V/200V
Output Voltage	DC24V
Torque	21N.m
Rotational Speed	1500rpm
Gate Speed	12m/m
Limit	Magnetism
Noise	≤50dB
Work Temperature	-45C~+75°C

Smart Sliding Automatic Gate Motor Kits Energy Efficient DC 1500KG Commercial

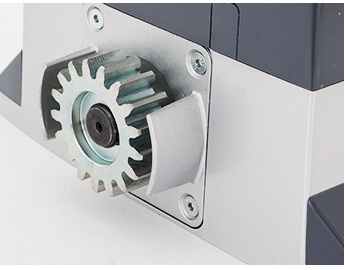

Rust proof stainless steel gear

Durable, rust resistant, and corrosion-resistant

Reserve power supply

After a power outage, there is a backup power supply available

Aluminum alloy shell

Strictly select aluminum materials in adherence to established standards to deliver premium-quality products to our customers.
